Flexible Pavement Design in Tulsa OK: Geotechnical Parameters That Matter

Tulsa sits at roughly 700 feet above sea level, straddling the Arkansas River with a population pushing 420,000. The subgrade here is not uniform. You get fat clays in the Osage Plains transitioning to leaner silts near the river terraces, and that directly controls your pavement life. Flexible pavement design in Tulsa demands more than a generic AASHTO catalog section. In our experience, a pavement that lasts 15 years in one part of town fails in five blocks over if the subgrade moisture regime is ignored. We have pulled cores on 44th Street where the base course looked pristine but the subgrade had pumped fines into the aggregate. Pairing the CBR investigation with a detailed grain-size analysis of the subgrade helps us catch those silty seams before they turn into premature rutting.

In Tulsa, the difference between a 10-year and a 25-year flexible pavement is not thicker asphalt — it is a dry, stable, well-drained subgrade.

Methodology and scope

Tulsa deals with 45 inches of rain a year and summer surface temperatures that can push asphalt past 140°F, followed by overnight drops into the 60s. That thermal cycling, combined with the expansive nature of the local Keokuk and Oolagah limestone residual soils, creates a unique fatigue environment for flexible pavement. The granular base needs to breathe without letting the subgrade migrate upward. We typically run soaked CBR per ASTM D1883 on undisturbed Shelby tubes, then cross-check with a proctor-tests series to define the compaction window. The design structural number from AASHTO 93 gets adjusted based on seasonal moisture correction factors we have calibrated with data from the Oklahoma Mesonet weather stations. A one-size-fits-all resilient modulus from a textbook correlation does not cut it here. We back-calculate layer moduli from FWD testing whenever the project budget allows, especially on arterial roads where the ESAL count runs high.

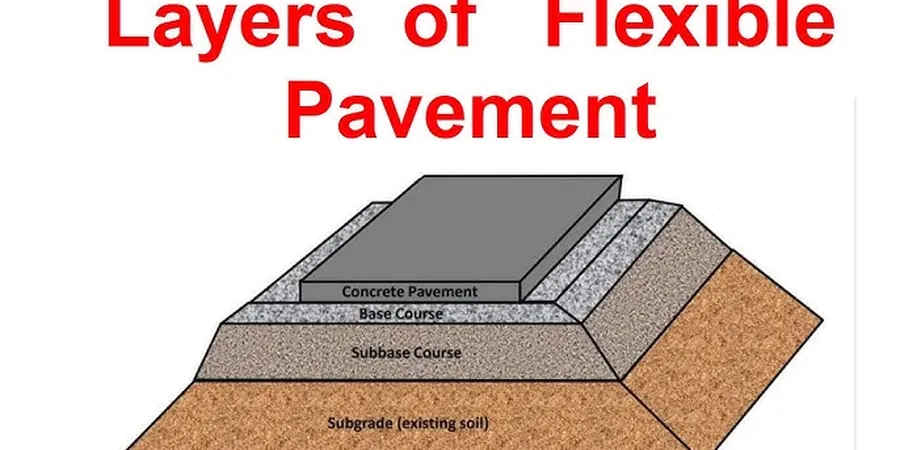

Flexible Pavement Design in Tulsa OK: Geotechnical Parameters That Matter

Local considerations

The most common failure we see in Tulsa flexible pavements is not alligator cracking from fatigue — it is longitudinal cracking along the wheel paths caused by differential heave in the subgrade. A developer will scrape the site flat, cut into a weathered shale layer on one end and fill over an old meander of the Arkansas River on the other, then pave the same section across both. Within two wet-dry cycles, the transition zone starts moving. The asphalt mat cannot bridge that differential movement. We flag these transition zones during the geotechnical investigation and recommend either a deep undercut with select fill, or a lime-treated working platform that bridges the stiffness gap. The additional cost is modest compared to a mill-and-overlay three years into the pavement life. Another risk is perched groundwater in the sandstone lenses that dot the north Tulsa hills — without an edge drain or daylighted base, the water table rises after heavy spring rains and saturates the base course from below.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.xyz

Applicable standards

ASTM D1883 – Standard Test Method for California Bearing Ratio (CBR) of Laboratory-Compacted Soils, AASHTO 93 – Guide for Design of Pavement Structures (flexible pavement empirical method), ASTM D2487 – Unified Soil Classification System (USCS) for subgrade characterization, ASTM D698 / D1557 – Standard Proctor and Modified Proctor compaction tests, ODOT Standard Specifications for Highway Construction (current year)

Associated technical services

Subgrade Characterization

Undisturbed Shelby tube sampling across the alignment, logging with USCS per ASTM D2487, and selecting representative specimens for soaked CBR and resilient modulus testing.

Pavement Structural Design

AASHTO 93 empirical design calibrated with local ODOT and City of Tulsa experience. We provide SN calculations, layer thickness alternatives, and life-cycle cost comparisons.

Construction Quality Control

Field density testing with nuclear gauge per ASTM D6938, proof-rolling observation, and subgrade stiffness verification using lightweight deflectometer (LWD) during proof preparation.

Typical parameters

Parameter	Typical value
Design CBR (soaked, subgrade)	3 – 8 typical, >12 with stabilization
Structural Number (SN) target	3.8 – 5.2 for collector/arterial (20-yr ESAL)
Asphalt concrete thickness	4 – 7 in (HMA), depending on base type
Granular base thickness	6 – 12 in ODOT Type A crushed stone
Subgrade stabilization depth	8 – 12 in lime or cement-treated
Resilient modulus (Mr) target	≥ 6,000 psi for subgrade; ≥ 30,000 psi for base
Drainage coefficient (mi)	0.9 – 1.1 depending on edge drain presence

Frequently asked questions

How much does a flexible pavement geotechnical investigation cost for a typical Tulsa commercial lot?

For a commercial parking lot or access road in Tulsa, the investigation and design report typically falls between US$1,890 and US$4,870 depending on the number of borings, required lab testing, and whether FWD back-calculation is included.

Does the high plasticity clay in Tulsa require lime stabilization under a flexible pavement?

Often yes. When the subgrade plasticity index exceeds 20 and the soaked CBR is below 4, we recommend 8 to 12 inches of lime-treated subgrade. The calcium ions in the lime reduce the clay's affinity for water, mitigating the shrink-swell cycles that cause premature fatigue cracking.

What traffic data do you need to design the pavement section?

We need the current and projected average daily traffic (ADT), the percentage of heavy trucks, and the design life in years. From that, we calculate the 18-kip equivalent single axle loads (ESALs) used in the AASHTO 93 structural number equation. For City of Tulsa arterial streets, we also coordinate with the Public Works Department to obtain their traffic count data.
